AMortarProPawn Class Reference

#include <MortarProPawn.h>

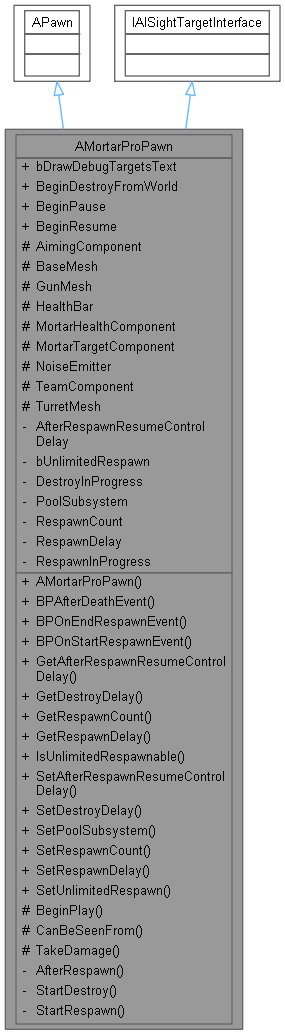

Inheritance diagram for AMortarProPawn:

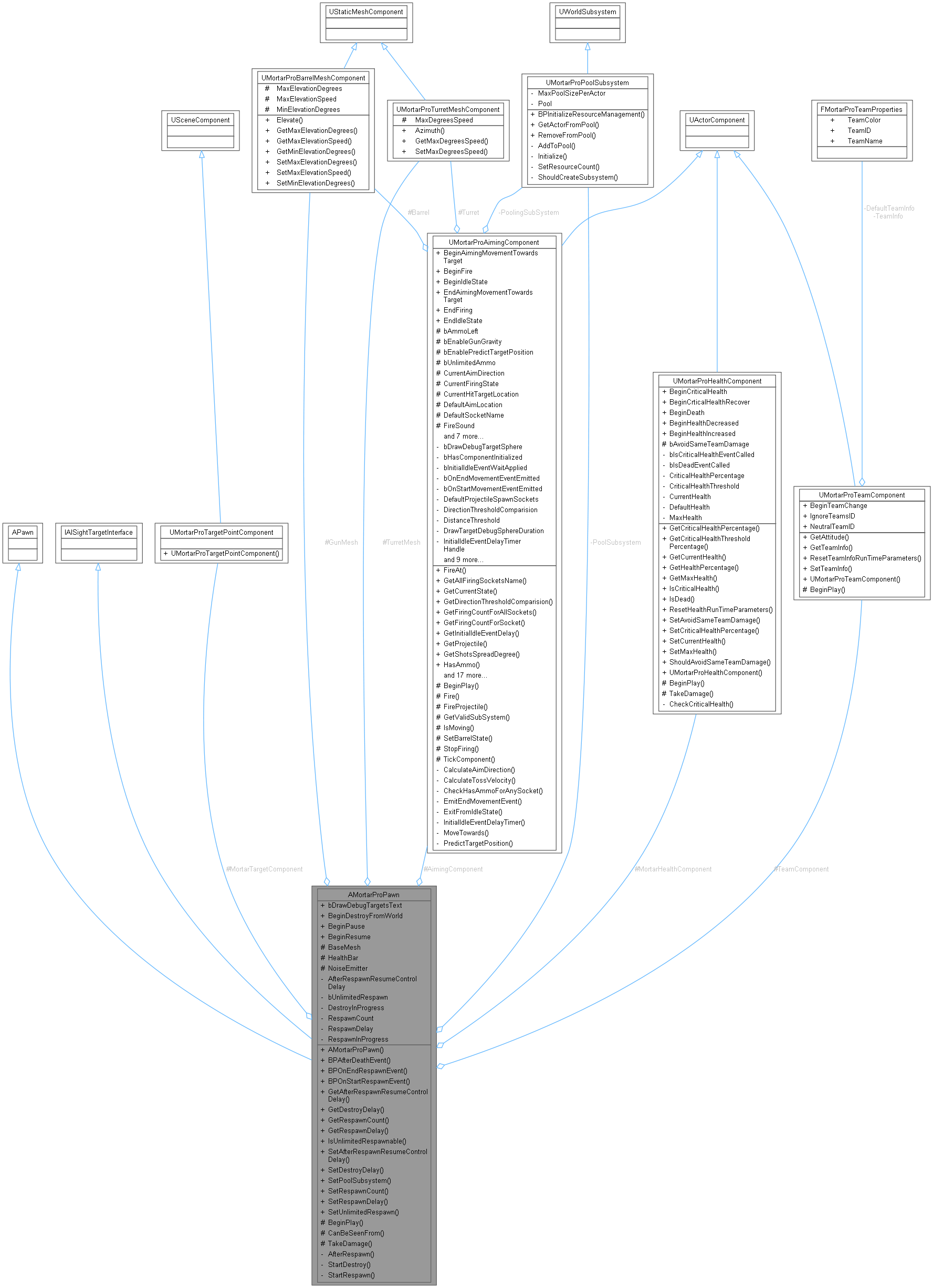

Collaboration diagram for AMortarProPawn:

Public Member Functions
	AMortarProPawn ()
void	BPAfterDeathEvent ()
void	BPOnEndRespawnEvent ()
void	BPOnStartRespawnEvent ()
float	GetAfterRespawnResumeControlDelay () const
float	GetDestroyDelay () const
uint8	GetRespawnCount () const
float	GetRespawnDelay () const
bool	IsUnlimitedRespawnable () const
void	SetAfterRespawnResumeControlDelay (const float &Delay)
void	SetDestroyDelay (const float &Delay)
void	SetPoolSubsystem (UMortarProPoolSubsystem *resourceManager)
void	SetRespawnCount (const uint8 &Count)
void	SetRespawnDelay (const float &Delay)
void	SetUnlimitedRespawn (const bool &UnlimitedRespawning)

Public Attributes
uint32	bDrawDebugTargetsText: 1
FMortarProBeginDestroyFromWorld	BeginDestroyFromWorld
FMortarProBeginPause	BeginPause
FMortarProBeginResume	BeginResume

Protected Member Functions
virtual void	BeginPlay () override
virtual bool	CanBeSeenFrom (const FVector &ObserverLocation, FVector &OutSeenLocation, int32 &NumberOfLoSChecksPerformed, float &OutSightStrength, const AActor *IgnoreActor, const bool *bWasVisible=nullptr, int32 *UserData=nullptr) const
virtual float	TakeDamage (float DamageAmount, struct FDamageEvent const &DamageEvent, class AController *EventInstigator, AActor *DamageCauser) override

Protected Attributes
UMortarProAimingComponent *	AimingComponent = nullptr
class UStaticMeshComponent *	BaseMesh = nullptr
class UMortarProBarrelMeshComponent *	GunMesh = nullptr
class UWidgetComponent *	HealthBar = nullptr
class UMortarProHealthComponent *	MortarHealthComponent = nullptr
class UMortarProTargetPointComponent *	MortarTargetComponent = nullptr
class UPawnNoiseEmitterComponent *	NoiseEmitter = nullptr
class UMortarProTeamComponent *	TeamComponent = nullptr
class UMortarProTurretMeshComponent *	TurretMesh = nullptr

Private Member Functions
void	AfterRespawn ()
void	StartDestroy ()
void	StartRespawn ()

Private Attributes
float	AfterRespawnResumeControlDelay = 2.f
uint32	bUnlimitedRespawn: 1
uint32	DestroyInProgress: 1
class UMortarProPoolSubsystem *	PoolSubsystem
uint8	RespawnCount = 0
float	RespawnDelay = 6.f
uint32	RespawnInProgress: 1

Detailed Description

Main Actor Class for Mortar Project which can be used in level. This will contain three main mesh components, Static Base Then Turret and Then Mortar Gun/Barrel. Projectiles are spawned from Gun/barrel

Constructor & Destructor Documentation

AMortarProPawn()

AMortarProPawn::AMortarProPawn

(

)

Member Function Documentation

AfterRespawn()

void AMortarProPawn::AfterRespawn ( )

private

Respawn Function Which after playing effect we want to resume firing

BeginPlay()

virtual void AMortarProPawn::BeginPlay ( )

overrideprotectedvirtual

Called when the game starts or when spawned

BPAfterDeathEvent()

void AMortarProPawn::BPAfterDeathEvent

(

)

Event Called After each Death. Blueprint event only Can Add Animation sound etc

BPOnEndRespawnEvent()

void AMortarProPawn::BPOnEndRespawnEvent

(

)

Event Called Before Respawning of Actor has been completed.

BPOnStartRespawnEvent()

void AMortarProPawn::BPOnStartRespawnEvent

(

)

Event Called Before Respawning of Actor after Death. Blueprint event only Can Add sounds,effets

CanBeSeenFrom()

virtual bool AMortarProPawn::CanBeSeenFrom ( const FVector &  ObserverLocation, FVector &  OutSeenLocation, int32 &  NumberOfLoSChecksPerformed, float &  OutSightStrength, const AActor *  IgnoreActor, const bool *  bWasVisible = nullptr, int32 *  UserData = nullptr  ) const

protectedvirtual

Function to Override to allow seeing from Mortar Gun i.e Barrel More Info

See also

https://docs.unrealengine.com/en-US/API/Runtime/AIModule/Perception/IAISightTargetInterface/CanBeSeenFrom/index.html

GetAfterRespawnResumeControlDelay()

float AMortarProPawn::GetAfterRespawnResumeControlDelay

(

)

const

Time after Respawn which Mortar Control will be given back so that it can proceed with shooting

GetDestroyDelay()

float AMortarProPawn::GetDestroyDelay

(

)

const

Getter Function To get Delay after which Mortar will be dstroyed after spawning limit has been exhausted

Returns

Time Delay in float

GetRespawnCount()

uint8 AMortarProPawn::GetRespawnCount

(

)

const

Getter function to tell How Many Times Spawning Is Allowed.

Returns

unsigned bytes variable containing lives left

GetRespawnDelay()

float AMortarProPawn::GetRespawnDelay

(

)

const

Getter Function To get Delay time to respawn after death

Returns

Time Delay in float

IsUnlimitedRespawnable()

bool AMortarProPawn::IsUnlimitedRespawnable

(

)

const

Function to Get whether the Mortar has infinite life( To infinity and beyond :) )

Returns

Bool variable true if unlimited spawning false otherwise

SetAfterRespawnResumeControlDelay()

void AMortarProPawn::SetAfterRespawnResumeControlDelay

(

const float &

Delay

)

Time after Respawn which Mortar Control will be given back so that it can proceed with shooting

Parameters

[in]

Delay

Time after which control will be given back to mortar in float

SetDestroyDelay()

void AMortarProPawn::SetDestroyDelay

(

const float &

Delay

)

Function to Set Time After which Mortar actor will be destroyed from world

Parameters

[in]

Delay

Time After Which to Destroy

SetPoolSubsystem()

void AMortarProPawn::SetPoolSubsystem

(

UMortarProPoolSubsystem *

resourceManager

)

This function sets the subsystem for Pooling

Parameters

[in]

resourceManager

Takes a Class Name of Pool Subsystem

SetRespawnCount()

void AMortarProPawn::SetRespawnCount

(

const uint8 &

Count

)

Function to How Many Times Spawning Is Allowed.Won't have any effect if Unlimited Spawning is on

Parameters

[in]

Count

Total Times to Spawn

SetRespawnDelay()

void AMortarProPawn::SetRespawnDelay

(

const float &

Delay

)

Function to Set Time to respawn After Mortar death

Parameters

[in]

Delay

Time to respawn after death in flaot

SetUnlimitedRespawn()

void AMortarProPawn::SetUnlimitedRespawn

(

const bool &

UnlimitedRespawning

)

Function to Set Unlimited Spawning

Parameters

[in]

UnlimitedRespawning

True to Enable Unlimited Spawning False otherwise

StartDestroy()

void AMortarProPawn::StartDestroy ( )

private

Destroy Function Which will be called after death This will be called after the Destroy delay

StartRespawn()

void AMortarProPawn::StartRespawn ( )

private

Respawn Function Which will be called after death.Here Mainly we want to play respawn effects and sound This will be called after the respawn delay

TakeDamage()

virtual float AMortarProPawn::TakeDamage ( float  DamageAmount, struct FDamageEvent const &  DamageEvent, class AController *  EventInstigator, AActor *  DamageCauser  )

overrideprotectedvirtual

Function to afflict damage This will be called whenever the actor Receives damage

Parameters

[in]	DamageAmount	Damage Amount
[in]	DamageEvent	Data package that fully describes the damage received.
[in]	EventInstigator	The Controller responsible for the damage.
[in]	DamageCauser	Damage Causer Here In our example it will be Projectile Actor

Member Data Documentation

AfterRespawnResumeControlDelay

float AMortarProPawn::AfterRespawnResumeControlDelay = 2.f

private

Time after Respawn which Mortar Control will be given back so that it can proceed with shooting

AimingComponent

UMortarProAimingComponent* AMortarProPawn::AimingComponent = nullptr

protected

Aiming Component Which Will handle all the aiming and shooting

BaseMesh

class UStaticMeshComponent* AMortarProPawn::BaseMesh = nullptr

protected

Base Structure Mesh of the Mortar This is immovable object

bDrawDebugTargetsText

uint32 AMortarProPawn::bDrawDebugTargetsText

Flag to Enable Debug Drawing of Text which is drawn at position of Valid Targets

BeginDestroyFromWorld

FMortarProBeginDestroyFromWorld AMortarProPawn::BeginDestroyFromWorld

Destroy Event That Will be Broadcasted as soon as Health Reaches 0 and Respawning Limit has been reached

BeginPause

FMortarProBeginPause AMortarProPawn::BeginPause

Pause Event that will be broadcasted as soon as Health Reaches 0 like disabling AI camera etc

BeginResume

FMortarProBeginResume AMortarProPawn::BeginResume

Resume Event that will be broadcasted after AI respawns

bUnlimitedRespawn

uint32 AMortarProPawn::bUnlimitedRespawn

private

Allow Unlimited Respawning of Mortar Actor.Each Time Mortar Dies then it will respawn after the mentioned delay with default attributes

DestroyInProgress

uint32 AMortarProPawn::DestroyInProgress

private

Destruction In Progress

GunMesh

class UMortarProBarrelMeshComponent* AMortarProPawn::GunMesh = nullptr

protected

Gun Moves Up and Down

HealthBar

class UWidgetComponent* AMortarProPawn::HealthBar = nullptr

protected

Health Bar Widget to be Configured in BP

MortarHealthComponent

class UMortarProHealthComponent* AMortarProPawn::MortarHealthComponent = nullptr

protected

Generic Health Component That will handle all the health related things.Can Be added to any actor

MortarTargetComponent

class UMortarProTargetPointComponent* AMortarProPawn::MortarTargetComponent = nullptr

protected

Target Component which we will use to shoot at

NoiseEmitter

class UPawnNoiseEmitterComponent* AMortarProPawn::NoiseEmitter = nullptr

protected

Noise Emitter For Pawn Hearing Sensing

PoolSubsystem

class UMortarProPoolSubsystem* AMortarProPawn::PoolSubsystem

private

Reference FOr Pool Manager. This needs to be set once only by anyone Used only for reference we wont be doing anything with this

RespawnCount

uint8 AMortarProPawn::RespawnCount = 0

private

How Many Times Respawning is Allowed. Only Works if Unlimited Respawning if Off

RespawnDelay

float AMortarProPawn::RespawnDelay = 6.f

private

Time after which Mortar will be deleted from world that is when respawn limit has been exhausted float DestroyDelay = 5.f;

/**- Time after which Mortar will be respawned

RespawnInProgress

uint32 AMortarProPawn::RespawnInProgress

private

Respawning In Progress

TeamComponent

class UMortarProTeamComponent* AMortarProPawn::TeamComponent = nullptr

protected

Generic Team Component Telling which actor belongs to which team

TurretMesh

class UMortarProTurretMeshComponent* AMortarProPawn::TurretMesh = nullptr

protected

Static Mesh that moves Right to Left

---

The documentation for this class was generated from the following file:

• Public/MortarProPawn.h
