AMortarProAIController Class Reference

#include <MortarProAIController.h>

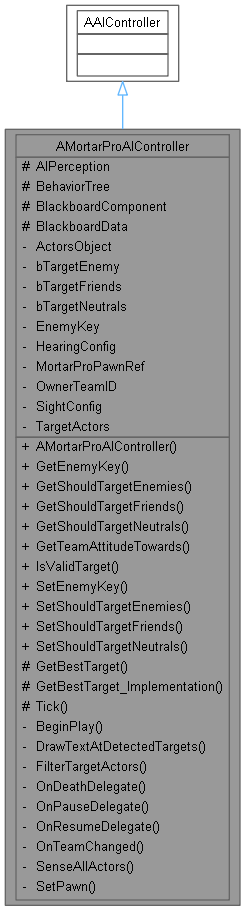

Inheritance diagram for AMortarProAIController:

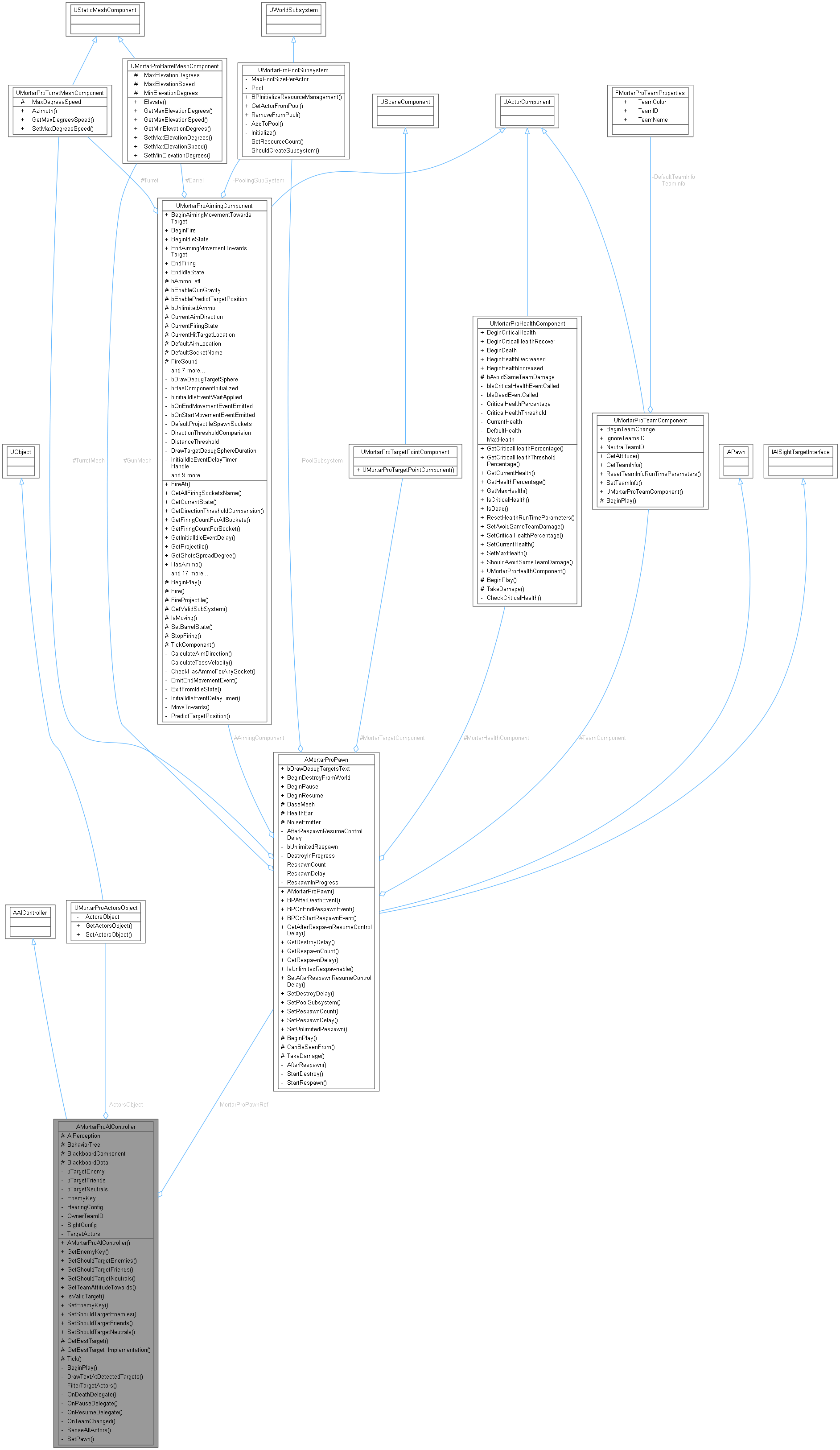

Collaboration diagram for AMortarProAIController:

Public Member Functions
	AMortarProAIController ()
FName	GetEnemyKey () const
bool	GetShouldTargetEnemies () const
bool	GetShouldTargetFriends () const
bool	GetShouldTargetNeutrals () const
ETeamAttitude::Type	GetTeamAttitudeTowards (const AActor &Other) const override
bool	IsValidTarget (const AActor *Target)
void	SetEnemyKey (const FName &Key)
void	SetShouldTargetEnemies (const bool &bSelect)
void	SetShouldTargetFriends (const bool &bSelect)
void	SetShouldTargetNeutrals (const bool &bSelect)

Protected Member Functions
void	GetBestTarget (TArray< AActor * > &OutDetectedActors)
virtual void	GetBestTarget_Implementation (TArray< AActor * > &OutDetectedActors)
void	Tick (float DeltaSeconds) override

Protected Attributes
class UAIPerceptionComponent *	AIPerception
UBehaviorTree *	BehaviorTree
UBlackboardComponent *	BlackboardComponent
UBlackboardData *	BlackboardData

Private Member Functions
virtual void	BeginPlay () override
void	DrawTextAtDetectedTargets (TArray< AActor * > &TargetActors)
void	FilterTargetActors (TArray< AActor * > &OutFilteredActors)
void	OnDeathDelegate ()
void	OnPauseDelegate ()
void	OnResumeDelegate ()
void	OnTeamChanged (FMortarProTeamProperties PreviousTeam, FMortarProTeamProperties CurrentTeam)
virtual void	SenseAllActors (const TArray< AActor * > &ActorsDetected)
virtual void	SetPawn (APawn *InPawn) override

Private Attributes
class UMortarProActorsObject *	ActorsObject
uint32	bTargetEnemy: 1
uint32	bTargetFriends: 1
uint32	bTargetNeutrals: 1
FName	EnemyKey = "DetectedEnemies"
class UAISenseConfig_Hearing *	HearingConfig { nullptr }
class AMortarProPawn *	MortarProPawnRef { nullptr }
FGenericTeamId	OwnerTeamID
class UAISenseConfig_Sight *	SightConfig { nullptr }
TArray< AActor * >	TargetActors

Detailed Description

AI Controller Class . Mind Of AI contains logic for detecting actors using AI Perception

Constructor & Destructor Documentation

AMortarProAIController()

AMortarProAIController::AMortarProAIController

(

)

Member Function Documentation

BeginPlay()

virtual void AMortarProAIController::BeginPlay ( )

overrideprivatevirtual

Event Called in beg

DrawTextAtDetectedTargets()

void AMortarProAIController::DrawTextAtDetectedTargets ( TArray< AActor * > &  TargetActors )

private

Draws Debug Text At Detected Targets.

Parameters

[in]

TargetActors

TArray containing actors sorted according to priority

FilterTargetActors()

void AMortarProAIController::FilterTargetActors ( TArray< AActor * > &  OutFilteredActors )

private

This will filter and select those actors only which are target of current actors If we select friends as target then this function will return only friends target If we select enemy target then this will return enemy target only

Parameters

[out]

OutFilteredActors

Tarray of Actors which are filtered means actors that needs to be targetd. We initially pass detected actors

GetBestTarget()

void AMortarProAIController::GetBestTarget ( TArray< AActor * > &  OutDetectedActors )

protected

This Returns Array which is sorted according to some condition could be distance etc This Function is Blueprint Native Event Allowing User to override the functionality in Blueprints

Parameters

[out]

OutDetectedActors

Tarray of Actors Detected by AI. This will sort The detected actors

GetBestTarget_Implementation()

virtual void AMortarProAIController::GetBestTarget_Implementation ( TArray< AActor * > &  OutDetectedActors )

protectedvirtual

GetEnemyKey()

FName AMortarProAIController::GetEnemyKey

(

)

const

Getter Function To get the name of key that will be used in Blackboard

Returns

Name of Key as FName

GetShouldTargetEnemies()

bool AMortarProAIController::GetShouldTargetEnemies

(

)

const

Getter Function To get whether to select enemy as target in behavior tree or not

Returns

Boolean flag denoting whether to select enemy or not

GetShouldTargetFriends()

bool AMortarProAIController::GetShouldTargetFriends

(

)

const

Getter Function To get whether to select Friends as target in behavior tree or not

Returns

Boolean flag denoting whether to select friends or not

GetShouldTargetNeutrals()

bool AMortarProAIController::GetShouldTargetNeutrals

(

)

const

Getter Function To get whether to select Neutrals as target in behavior tree or not

Returns

Boolean flag denoting whether to select Neutrals or not

GetTeamAttitudeTowards()

ETeamAttitude::Type AMortarProAIController::GetTeamAttitudeTowards ( const AActor &  Other ) const

override

Returns Behavior our AI Pawn towards a detected pawn

Parameters

[in]

Other

Actor for which we want to evaluate attitude towards

Returns

Attitude of Current owner towards Other

IsValidTarget()

bool AMortarProAIController::IsValidTarget

(

const AActor *

Target

)

Returns whether actor passed is target or not.Target depends on flags bShouldTarget Enemies/NEutrals/Friends. If we select target friends then in the case friends will be enemies :(

Parameters

[in]

Target

Actor for which we will check whether it is valid or not

Returns

True if target found False otherwise

OnDeathDelegate()

void AMortarProAIController::OnDeathDelegate ( )

private

Event Called On Death. Here we generally like to disconnect Controller which then can be deleted

OnPauseDelegate()

void AMortarProAIController::OnPauseDelegate ( )

private

Event Called When AI Dies and in future would want to resume

OnResumeDelegate()

void AMortarProAIController::OnResumeDelegate ( )

private

Event Called When AI Respawns after Death

OnTeamChanged()

void AMortarProAIController::OnTeamChanged ( FMortarProTeamProperties  PreviousTeam, FMortarProTeamProperties  CurrentTeam  )

private

Callback Function When Team is changed

Parameters

[in]	PreviousTeam	Details of Previous Team
[in]	CurrentTeam	Details of Current Team

SenseAllActors()

virtual void AMortarProAIController::SenseAllActors ( const TArray< AActor * > &  ActorsDetected )

privatevirtual

Function to be called on Perception Updation

Parameters

[in]

ActorsDetected

Tarray of Actors Detected by AI

SetEnemyKey()

void AMortarProAIController::SetEnemyKey

(

const FName &

Key

)

This function sets the name of key that will be used in Blackboard

Parameters

[in]

Key

Name of key that will be used in blackboard

SetPawn()

virtual void AMortarProAIController::SetPawn ( APawn *  InPawn )

overrideprivatevirtual

Sets Pawn and Register for events

Parameters

[in]

InPawn

Pawn to set

SetShouldTargetEnemies()

void AMortarProAIController::SetShouldTargetEnemies

(

const bool &

bSelect

)

This function sets whether to choose enemy as target in behavior tree or not

Parameters

[in]

bSelect

Boolean flag whether to select enemy or not

SetShouldTargetFriends()

void AMortarProAIController::SetShouldTargetFriends

(

const bool &

bSelect

)

This function sets whether to choose Friends as target in behavior tree or not

Parameters

[in]

bSelect

Boolean flag whether to select Friends or not

SetShouldTargetNeutrals()

void AMortarProAIController::SetShouldTargetNeutrals

(

const bool &

bSelect

)

This function sets whether to choose Neutrals as target in behavior tree or not

Parameters

[in]

bSelect

Boolean flag whether to select Neutrals or not

Tick()

void AMortarProAIController::Tick ( float  DeltaSeconds )

overrideprotected

Tick Function

Member Data Documentation

ActorsObject

class UMortarProActorsObject* AMortarProAIController::ActorsObject

private

Pointer To actors Object containing detected actors to be used in blackboard

AIPerception

class UAIPerceptionComponent* AMortarProAIController::AIPerception

protected

AI Perception Event for detecting senses

BehaviorTree

UBehaviorTree* AMortarProAIController::BehaviorTree

protected

Behavior Tree to run that will be setup in Blueprint

BlackboardComponent

UBlackboardComponent* AMortarProAIController::BlackboardComponent

protected

Contains Blackboard all keys

BlackboardData

UBlackboardData* AMortarProAIController::BlackboardData

protected

Blackboard to use Path Has to be setup in blueprint

bTargetEnemy

uint32 AMortarProAIController::bTargetEnemy

private

Whether to Select Enemies i.e with diff team id . Detection by Affilation should be configured accordingly in AI Controller

bTargetFriends

uint32 AMortarProAIController::bTargetFriends

private

Whether to Select Members of same team id . Detection by Affilation should be configured accordingly in AI Controller

bTargetNeutrals

uint32 AMortarProAIController::bTargetNeutrals

private

Whether to Select Neutral Members i.e. of team id = 0. Detection by Affilation should be configured accordingly in AI Controller

EnemyKey

FName AMortarProAIController::EnemyKey = "DetectedEnemies"

private

Key Name That Will be set in BehaviorTree By this keyname ai controller will set the values which will be later used Change Carefully need to change in behavior tree also

HearingConfig

class UAISenseConfig_Hearing* AMortarProAIController::HearingConfig { nullptr }

private

Hearing Sense

MortarProPawnRef

class AMortarProPawn* AMortarProAIController::MortarProPawnRef { nullptr }

private

Reference to Owner

OwnerTeamID

FGenericTeamId AMortarProAIController::OwnerTeamID

private

Team ID of the owner of this AI Controller

SightConfig

class UAISenseConfig_Sight* AMortarProAIController::SightConfig { nullptr }

private

Sight Sense. This is the dominant sense. we are having two senses only can add more from blueprint and also can change existing settings from there

TargetActors

TArray<AActor*> AMortarProAIController::TargetActors

private

Contains Reference To Target Actors detected view AI perception and are valid targets

---

The documentation for this class was generated from the following file:

• Public/AI/MortarProAIController.h
